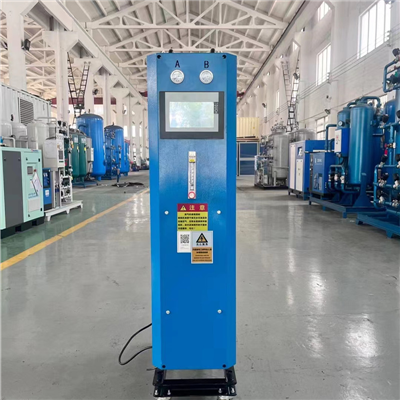

Modular nitrogen generator
2024/1/31
Oxygen concentrator principle
The separation of air in the oxygen concentrator mainly consists of two adsorption towers filled with molecular sieves.Under normal temperature conditions,compressed air is filtered,dehydrated,and purified before entering the adsorption tower.In the adsorption tower,nitrogen and other gases in the air are adsorbed by the molecular sieves,allowing oxygen to be enriched in the gas phase and stored in the oxygen buffer tank through the outlet.The molecular sieves that have already been adsorbed in the other tower are rapidly depressurized,By analyzing the adsorbed components and alternating between the two towers,cheap oxygen with a purity of≥90%can be obtained.
Characteristics of oxygen concentrator:
(1)Convenient and fast oxygen production:Advanced technology and unique airflow distributors make the airflow distribution more uniform,efficiently utilizing molecular sieves,and providing qualified oxygen in about 20 minutes.
(2)Convenient to use:The equipment has a compact structure and is installed as a whole,occupying a small area without requiring infrastructure investment.The investment is low,and oxygen can be produced on-site by simply connecting the power supply.
(3)More economical than other oxygen supply methods:The PSA process is a simple oxygen production method that uses air as raw material and consumes only the electrical energy consumed by the air compressor.The efficiency of molecular sieve loading is tighter,more solid,and has a longer service life.The pressure,purity,and flow rate are stable and adjustable,meeting the different needs of customers.
(4)Mechatronics integration design realizes automated operation:imported PLC controls fully automatic operation,oxygen flow rate,pressure and purity can be adjusted and continuously displayed,and unmanned operation can be achieved.
Technical indicators of oxygen concentrator:
Oxygen flow rate:1-300 Nm3/h
Oxygen purity 30-95%
Oxygen pressure 0.1~0.5MPa(pressurized)
Atmospheric dew point-60℃(customizable)
Note:The oxygen flow unit"Nm3/h"refers to the flow unit at 20℃and 0.101MPa(absolute pressure).
Technical use of oxygen concentrators:
1.In daily life,oxygen concentrators are often needed in places with dense populations,poor air circulation,and sparse oxygen at high altitudes.Sauna rooms,oxygen bars/elderly leisure activity rooms,high-altitude oxygen scarce areas or underground shopping malls can determine the size of oxygen concentrators based on the maximum population density and space size,and choose the corresponding specifications of oxygen concentrators;
2.Electric furnace steelmaking:decarburization,oxygen combustion heating,foam slag dissolution,metallurgical control and subsequent heating;
3.Wastewater treatment:Oxygen enriched aeration of activated sludge and oxygenation of water tanks;
4.Pulp bleaching and papermaking:Chlorine bleaching is converted into oxygen rich bleaching,providing cheap oxygen for wastewater treatment;
5.Nonferrous metal smelting:Smelting steel,zinc,nickel,lead,etc.requires the use of enriched oxygen,and the pressure swing adsorption oxygen production system is an excellent oxygen supply source
6.Field laser cutting construction:Cutting steel pipes and steel plates in the field,mobile or small oxygen concentrators can meet the requirements
7.Aquaculture,underground rivers,and aquariums:aeration or mixed oxygenation for fish,shrimp,and aquatic products
8.Ozone generator:Provides high concentration oxygen electrolysis to produce ozone,with higher and more stable ozone concentration,resulting in better disinfection and bleaching effects.Most ozone water treatment uses an oxygen source ozone generator.
HJN/95 nitrogen generator nitrogen purity: 95%
规格型号
氮气产量（Nm3/h）
有效耗气量（Nm3/min）
进口管径（DNmm）
出口管径（DNmm）
主机L×W(mm)
Model
Nitrogen
production
Effective air
consumption
Inlet pipe
size
Outlet pipe
diameter
Host
HJN95N-5
5
0.25
15
15
750×750
HJN95N-10
10
0.4
15
15
750×750
HJN95N-20
20
0.8
15
15
13500×850
HJN95N-30
30
1.2
25
15
1350×850
HJN95N-40
40
1.6
25
25
1400×1000
HJN95N-50
50
2
32
25
1400×1000
HJN95N-60
60
2.4
32
25
1600×1000
HJN95N-80
80
3.2
40
25
1600×1000
HJN95N-100
100
4
40
25
1800×1100
HJN95N-150
150
6
50
32
2000×1200
HJN95N-200
200
8
50
32
2000×1200
HJN95N-300
300
12
65
40
2200×1200
HJN95N-400
400
16
65
40
2400×1350
HJN95N-500
500
20
80
50
2500×1550
HJN95N-600
600
24
80
50
2850×1550
HJN95N-800
800
32
100
65
3000×1650
HJN95N-1000
1000
40
100
65
3100×1750
HJN95N-1500
1500
60
125
80
3250×1850
HJN95N-2000
2000
80
150
100
3500×2150
HJN95N-3000
3000
120
200
100
4400×3150
HJN/29 nitrogen generator nitrogen purity: 99%
规格型号
氮气产量（Nm3/h）
有效耗气量（Nm3/min）
进口管径（DNmm）
出口管径（DNmm）
主机L×W(mm)
Model
Nitrogen
production
Effective air
consumption
Inlet pipe
size
Outlet pipe
diameter
Host
HJN29N-5
5
0.3
15
15
750×750
HJN29N-10
10
0.46
15
15
1350×850
HJN29N-20
20
0.95
15
15
1400×1000
HJN29N-30
30
1.4
25
15
1400×1000
HJN29N-40
40
1.9
25
25
1400×1000
HJN29N-50
50
2.4
32
25
1600×1100
HJN29N-60
60
2.8
32
25
1600×1100
HJN29N-80
80
3.7
40
25
1800×1250
HJN29N-100
100
4.6
40
25
1800×1250
HJN29N-150
150
7.1
50
32
2000×1350
HJN29N-200
200
9.4
50
32
2150×1400
HJN29N-300
300
14.1
65
40
2250×1400
HJN29N-400
400
19
65
40
2500×1500
HJN29N-500
500
24.5
80
50
2750×1600
HJN29N-600
600
28
80
50
2850×1650
HJN29N-800
800
39.3
100
65
3000×1700
HJN29N-1000
1000
49.1
100
65
3100×1800
HJN29N-1500
1500
73.6
125
80
3250×1850
HJN29N-2000
2000
93.4
150
100
3500×2150
HJN29N-3000
3000
140
200
100
4400×3150
HJN/295 nitrogen generator nitrogen purity: 99.5%
规格型号
氮气产量（Nm3/h）
有效耗气量（Nm3/min）
进口管径（DNmm）
出口管径（DNmm）
主机L×W(mm)
Model
Nitrogen
production
Effective air
consumption
Inlet pipe
size
Outlet pipe
diameter
Host
HJN295N-5
5
0.35
15
15
750×750
HJN295N-10
10
0.5
15
15
850×420
HJN295N-20
20
1.2
15
15
850×420
HJN295N-30
30
1.5
25
15
1200×600
HJN295N-40
40
2
25
25
1250×880
HJN295N-50
50
2.5
32
25
1260×880
HJN295N-60
60
3
32
25
1350×950
HJN295N-80
80
4
40
25
1750×1000
HJN295N-100
100
5
40
25
2150×1100
HJN295N-150
150
7.5
50
32
2250×1250
HJN295N-200
200
10
50
32
2500×1350
HJN295N-300
300
15
65
40
2750×1450
HJN295N-400
400
20
65
40
2850×1550
HJN295N-500
500
25
80
50
3000×1650
HJN295N-600
600
30
80
50
3100×1700
HJN295N-800
800
40
100
65
3250×1820
HJN295N-1000
1000
50
125
65
3500×2450
HJN295N-1500
1500
75
150
80
3800×2150
HJN295N-2000
2000
100
200
100
4400×3150
HJN295N-3000
3000
150
250
125
5100×3300
HJN/39 nitrogen generator nitrogen purity: 99.9%
规格型号
氮气产量（Nm3/h）
有效耗气量（Nm3/min）
进口管径（DNmm）
出口管径（DNmm）
主机L×W(mm)
Model
Nitrogen
production
Effective air
consumption
Inlet pipe
size
Outlet pipe
diameter
Host
HJN39N-5
5
0.5
15
15
1350×850
HJN39N-10
10
0.56
20
15
1400×1000
HJN39N-20
20
1.1
25
15
1400×1000
HJN39N-30
30
1.8
25
15
1600×1000
HJN39N-40
40
2.3
25
25
1800×1100
HJN39N-50
50
2.9
32
25
1800×1100
HJN39N-60
60
3.5
32
25
2000×1200
HJN39N-80
80
4.5
40
25
2250×1250
HJN39N-100
100
5.5
40
25
2250×1350
HJN39N-150
150
8.3
50
32
2500×1400
HJN39N-200
200
11.1
50
32
2750×1450
HJN39N-300
300
17.5
65
40
3000×1650
HJN39N-400
400
23.2
80
50
3100×1750
HJN39N-500
500
29.2
80
50
3250×1850
HJN39N-600
600
35.5
100
65
3500×2150
HJN39N-800
800
47
125
65
3500×2150
HJN39N-1000
1000
58
150
65
3500×2150
HJN39N-1500
1500
87
150
80
4400×3150
HJN39N-2000
2000
116
200
100
5100×3300
HJN39N-3000
3000
240
300
200
4400×4400
HJN/49 nitrogen generator nitrogen purity: 99.99%
规格型号
氮气产量（Nm3/h）
有效耗气量（Nm3/min）
进口管径（DNmm）
出口管径（DNmm）
主机L×W(mm)
Model
Nitrogen
production
Effective air
consumption
Inlet pipe
size
Outlet pipe
diameter
Host
HJN49N-5
5
0.5
15
15
1350×850
HJN49N-10
10
1
20
15
1400×1000
HJN49N-20
20
2
25
15
1600×1000
HJN49N-30
30
3
32
15
1800×1100
HJN49N-40
40
4
40
20
1800×1100
HJN49N-50
50
5
40
20
2000×1200
HJN49N-60
60
6
50
20
2250×1250
HJN49N-80
80
8
50
25
2250×1350
HJN49N-100
100
10
50
25
2500×1400
HJN49N-150
150
15
65
25
2750×1550
HJN49N-200
200
20
80
30
2850×1550
HJN49N-300
300
30
80
40
3100×1600
HJN49N-400
400
40
100
50
3250×1800
HJN49N-500
500
50
125
50
3500×2150
HJN49N-600
600
60
125
65
3500×2150
HJN49N-800
800
80
150
65
3500×2150
HJN49N-1000
1000
100
200
80
4400×3150
HJN/59 nitrogen generator nitrogen purity: 99.999%
规格型号
氮气产量（Nm3/h）
有效耗气量（Nm3/min）
进口管径（DNmm）
出口管径（DNmm）
主机L×W(mm)
Model
Nitrogen
production
Effective air
consumption
Inlet pipe
size
Outlet pipe
diameter
Host
HJN59N-5
5
0.6
25
15
1400×1000
HJN59N-10
10
1.1
25
15
1400×1000
HJN59N-20
20
2.2
40
15
1800×1200
HJN59N-30
30
3.3
40
25
2150×1300
HJN59N-40
40
4.4
50
25
2250×1350
HJN59N-50
50
5.5
50
25
2500×1350
HJN59N-60
60
7.1
50
25
2750×1450
HJN59N-80
80
8.8
65
32
2750×1450
HJN59N-100
100
11
65
32
2850×1650
HJN59N-200
200
22
65
40
3250×1820
HJN59N-200
200
22
65
40
3250×1820
HJN59N-300
300
43
80
40
3500×2200
HJN59N-400
400
60
100
50
3800×2200
HJN59N-500
500
75
100
50
4000×2200
HJN59N-600
600
90
125
65
4200×2200
HJN59N-800
800
120
125
65
4800×2200
HJN59N-1000
1000
150
150
80
5000×2200
